Suspension Clamp For Figure-8 Cable(SSC)
  • Suspension Clamp For Figure-8 Cable(SSC)

Suspension Clamp For Figure-8 Cable(SSC)

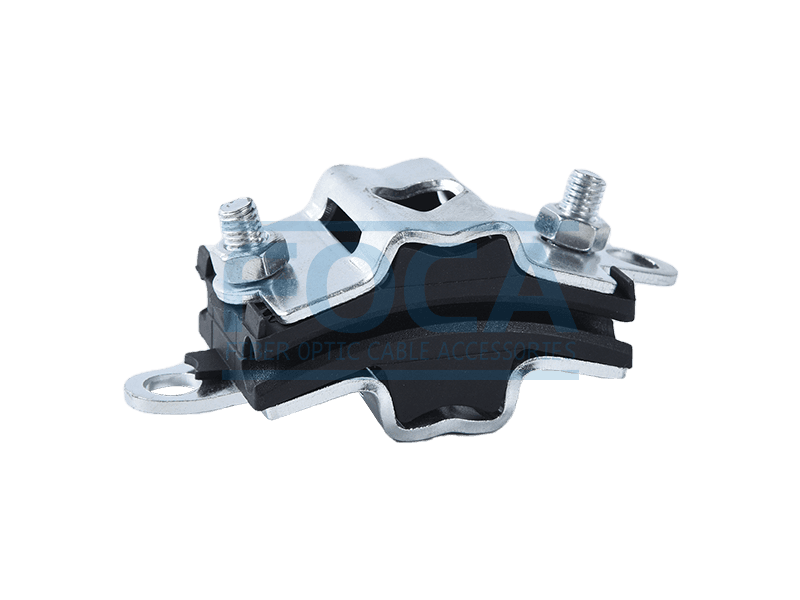

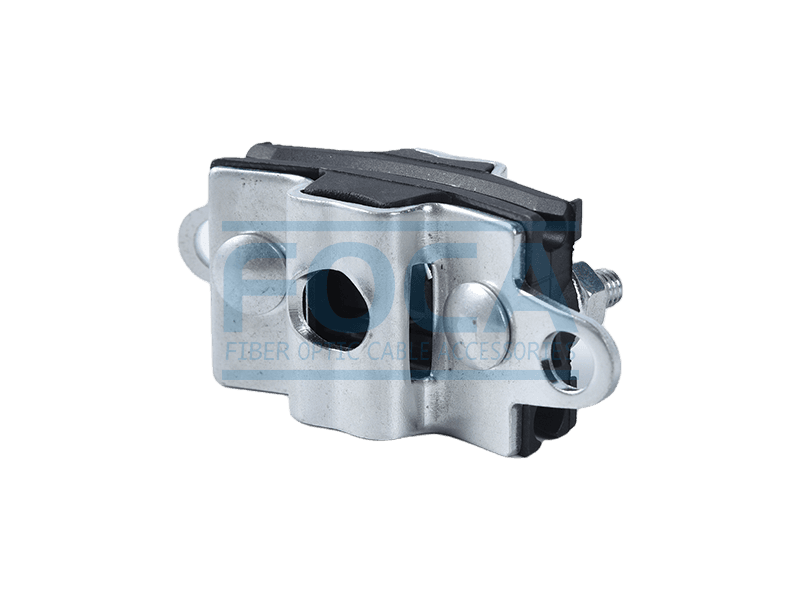

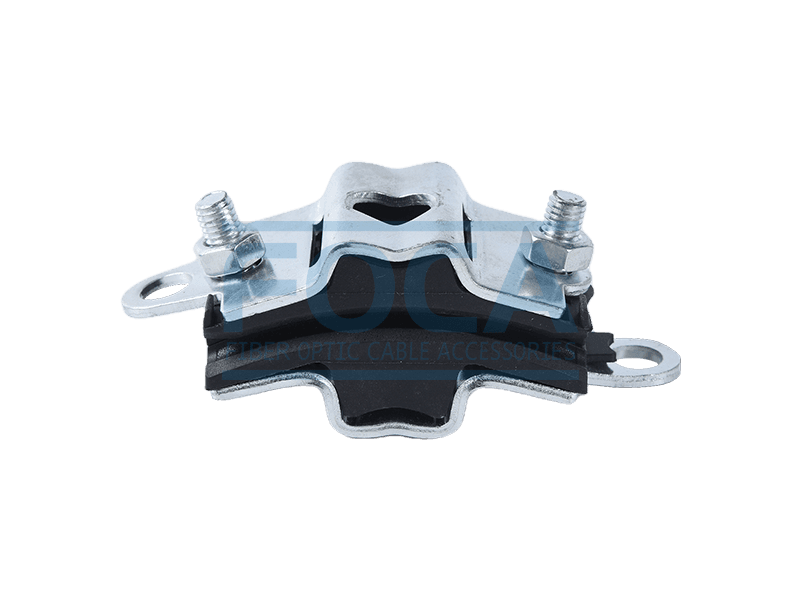

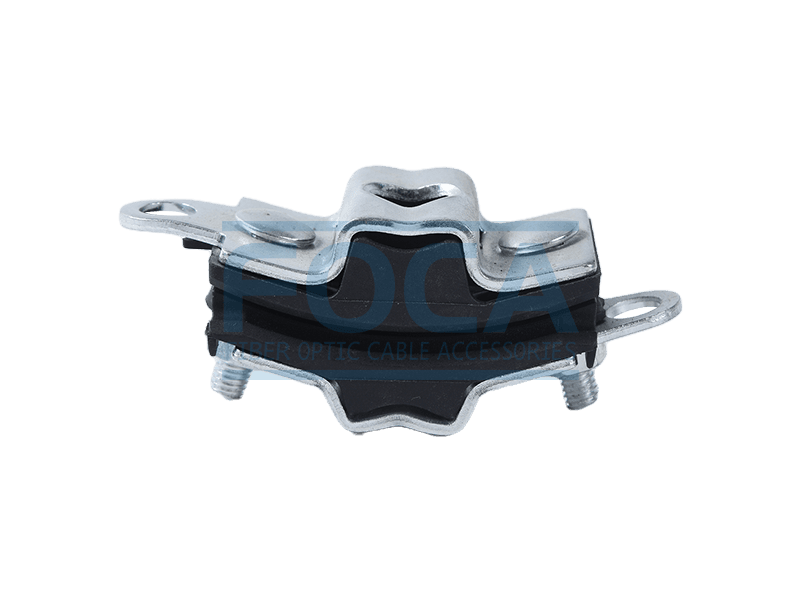

Product Description: The suspension clamp is composed of a UV resistant thermoplastic jaw reinforced with two galvanised steel plates.
Its unique patented design has been developed to offer a common hardware fitting covering all suspension situations on wooden, metal or concrete poles.

Its curved grooves and the reversibility of the system allow the clamp to be installed at intermediate poles on cables routes with angles up to 25°.

  • Technical Specification:

    Product type

    Messenger Diameter,mm

    MBL,KN

    Material

    Packaging

    SSC

    5-9

    8

    PA66,Galvanized steel

    31*27*27cm,100pcs/carton

    Key Features:

    The SSCclamp has two grooves to cover all messenger sizes from 4 to 9 mm (Ø over the outer sheath).

q  It can be installed on all types of poles with one steel band or one through bolt (drilled poles).

    q  The screws can be easily and quickly tightened with a 13 mm standard 6-point spanner.

    q  The clamp plastic inserts act as a fuse to limit damage on the cable in case of abnormal vertical overload (tree, car crash ...).

    q  The steel reinforcing plates have two supports with holes designed for hanging a roller during the running-out of the cable or two drop wire clamps.

    q  The nylon parts provide a 4 kV dielectric insulation between the cable messenger and the pole / clamp.


    This suspension clamp produces with high strength UV resistance thermoplastic,  galvanized steel. This clamp no need tools when installation and don’t damage cable.

    Galvanized steel metal plate is strong to cover the plastic, it guarantee long service life, and it can installed on wooden or concrete poles by bolts or pig tail hook. All the accessories for FTTH lines can be provided by FOCA.

    All the anchor clamps passed the lab test, such as temperature and humidity test, tensile strength test, aging test, corrosion resistance test etc
